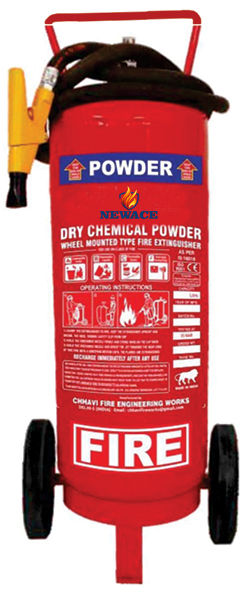

TROLLEY MOUNTED DRY CHEMICAL POWDER
FIRE EXTINGUISHER
Suitable for Class B & C fires that is involving
Flammable Liquid Petroleum Products,
Flammable Gases, Plastics & Electrical Fires.
TECHNICAL SPECIFICATIONS
| Capacity | DCP 25 Kgs (Trolley Type) |
DCP 50 Kgs (Trolley Type) |
DCP 75 Kgs (Trolley Type) |
|---|---|---|---|
| BIS Specification | IS: 10658 / IS: 16018 | IS: 10658 / IS: 16018 | IS: 10658 / IS: 16018 |
| Type of Fire | ABC / BC | ABC / BC | ABC / BC |
| Extinguisher Type | Stored Pressure / Gas Cartridge | Stored Pressure / Gas Cartridge | Stored Pressure / Gas Cartridge |
| Extinguishing Media | Dry Chemical Powder | Dry Chemical Powder | Dry Chemical Powder |
| Min. Effective Discharge (%) | 90 | 90 | 90 |
| Min Jet Length (mtr) | 6 | 8 | 10 |
| Test Pressure (kgf/cm²) | 35 | 35 | 35 |
| Operation Position | Upright | Upright | Upright |
Also Available for A, B & C class of Fire

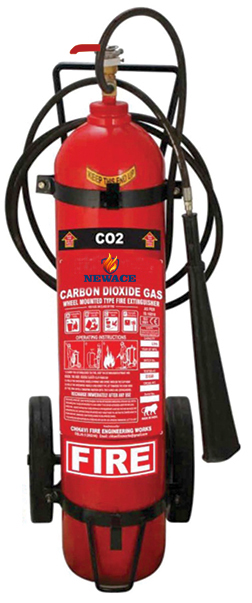

TROLLEY MOUNTED CARBON DIOXIDE
GAS BASED FIRE EXTINGUISHER
Suitable for Class B & C fires that is involving
Flammable Liquid Petroleum Products,
Flammable Gases, Plastics & Electrical Fires.
TECHNICAL SPECIFICATIONS
| Capacity | CO₂ 6.5 KG. | CO₂ 9 KG. | CO₂ 22.5 KG. |
|---|---|---|---|
| BIS Specification | IS: 2878 / IS: 16018 | IS: 2878 / IS: 16018 | IS: 2878 / IS: 16018 |
| Type of Fire | BC | BC | BC |
| Extinguisher Type | Stored Pressure | Stored Pressure | Stored Pressure |
| Extinguishing Media | CARBON DI-OXIDE | CARBON DI-OXIDE | CARBON DI-OXIDE |
| Min Jet Length (mtr) | 3 | 3 | 3 |
| Test Pressure (kgf/cm²) | 250 | 250 | 250 |
| Operation Position | Upright | Upright | Upright |
| Operating Valve | Wheel Type | Wheel Type | Wheel Type |
| Operating Temperature | -30° to 55°C | -30° to 55°C | -30° to 55°C |
| Fire Rating | — | — | — |
