Landing Valve
IS :5290
IS
Stainless steel Material
ISI Marked
IS :5290
IS

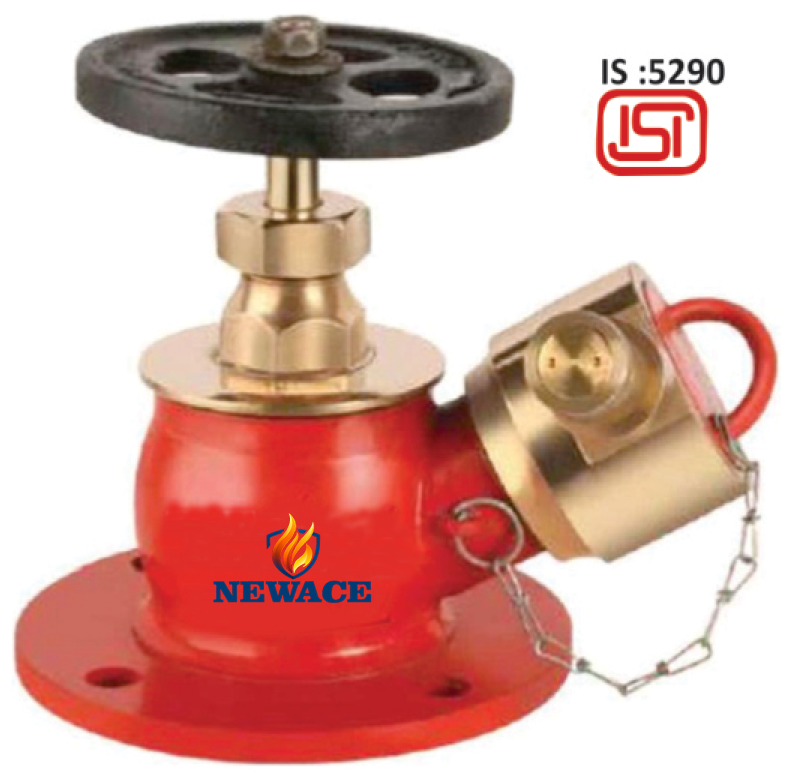

Gun Metal Material
ISI Marked
IS :5290
IS

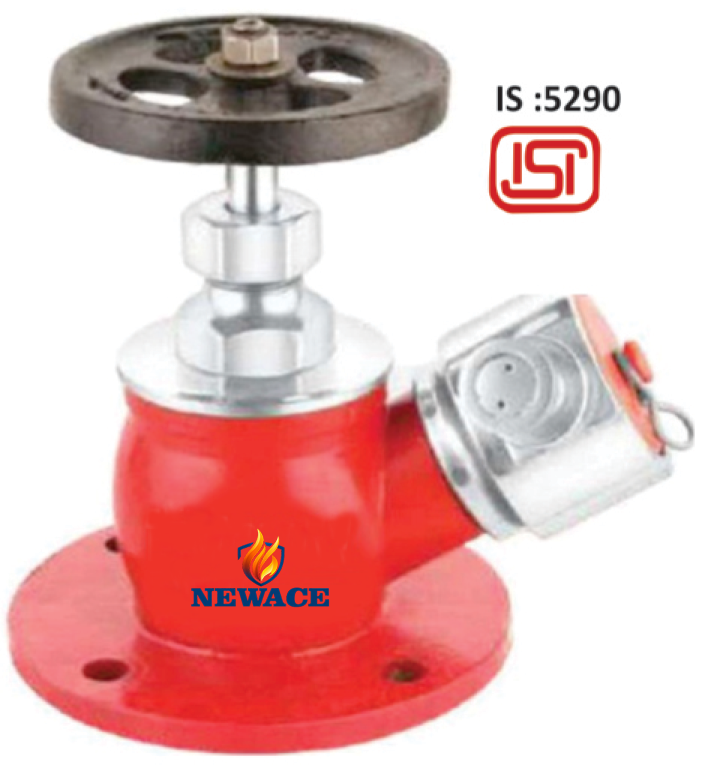

Aluminium Material
ISI Marked

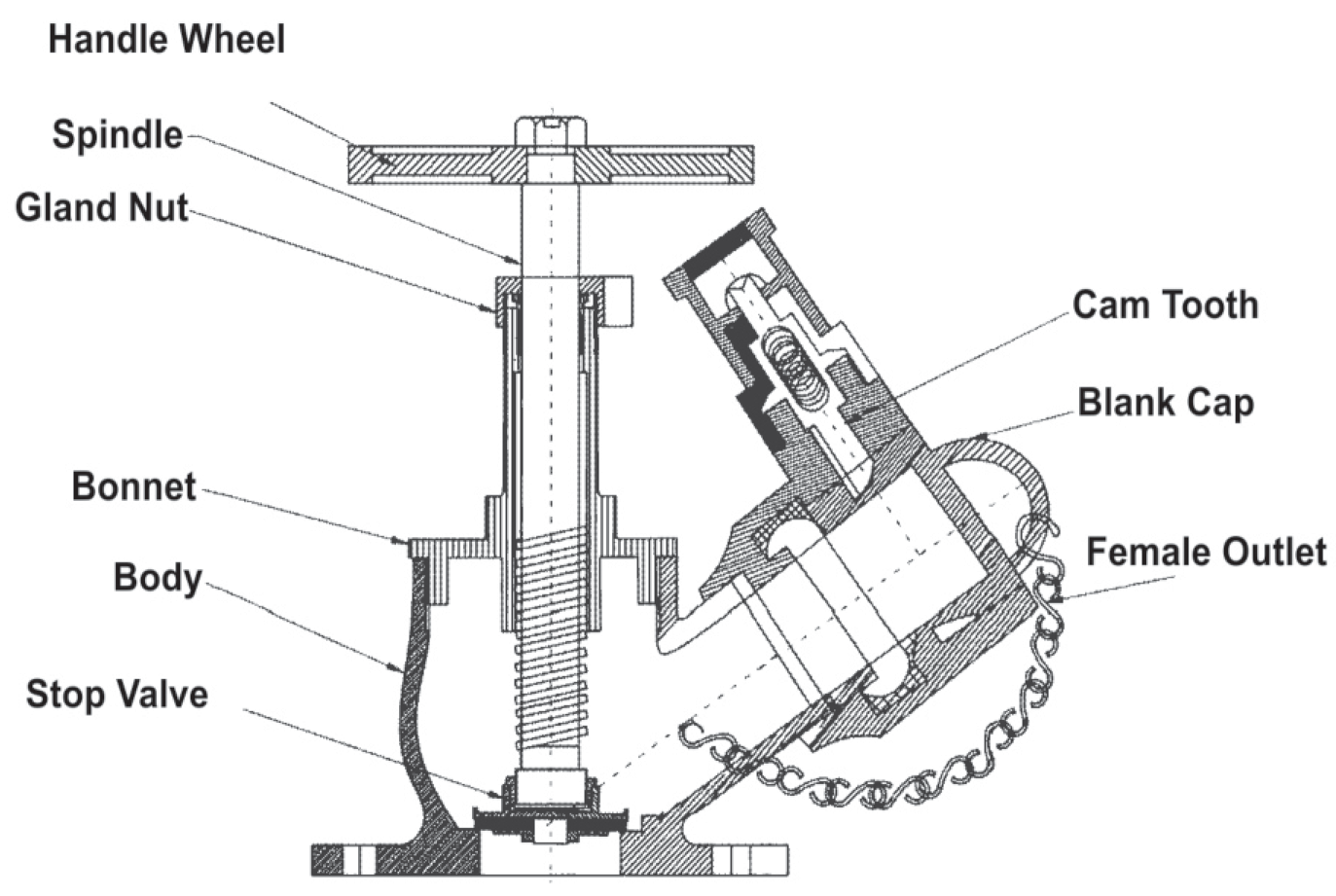

Single Outlet Landing Valve
TECHNICAL SPECIFICATIONS
Size :
63mm/75mm/80mm
Inlet :
3” NB Flanged
Outlet :
Female Instantaneous
Material :
Gun Metal/ Stainless Steel/ Aluminium Alloy
Conforming Specification :
IS: 5290, Type -A, ISI Marked
Performance Test :
Hydrostatic Test (Body Test) :
Tested at 23 kgf/cm2
Water tightness (Seat Test) :
Tested at 14 kgf/cm2
Flow Test:
900 LPM discharge at 7 kgf/cm2
Other Ranges :
Range :
38mm/ 50mm
Hand Wheel :
Grey Cast Iron
Finish:-
Body :
Painted Fire Red Colour
Male Adaptor & Accessories :
Polished
Hologram :
Sticker stuck on Landing Valve
Landing Valve
IS :5290
ISI
Stainless steel Material
ISI Marked
IS :5290
ISI

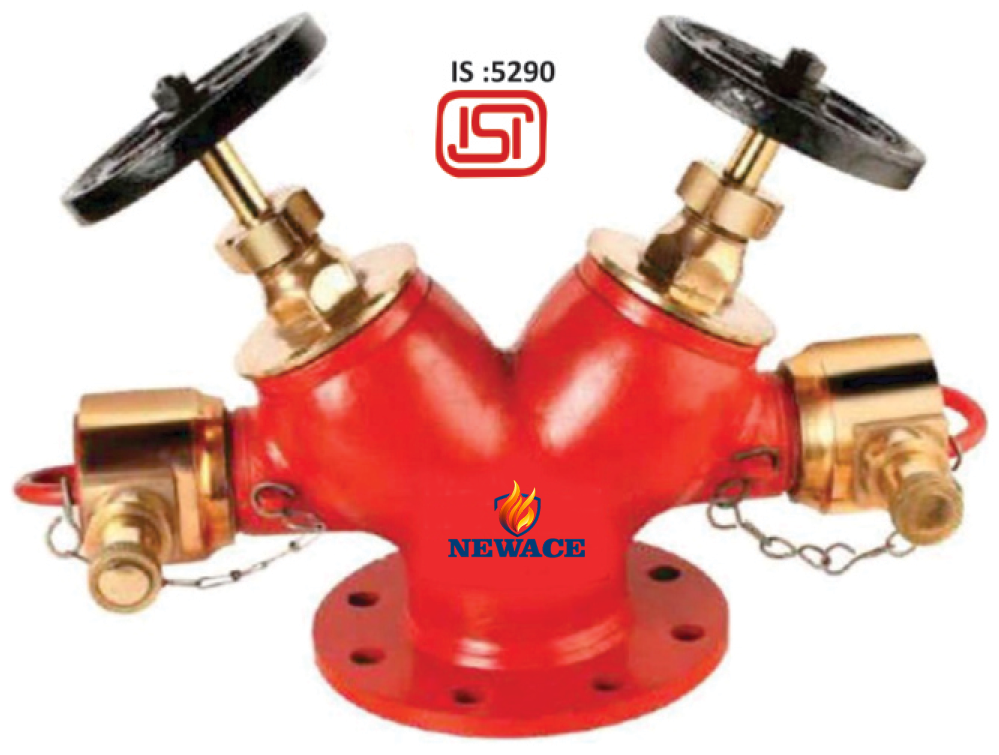

Gun Metal Material
ISI Marked
IS :5290
ISI

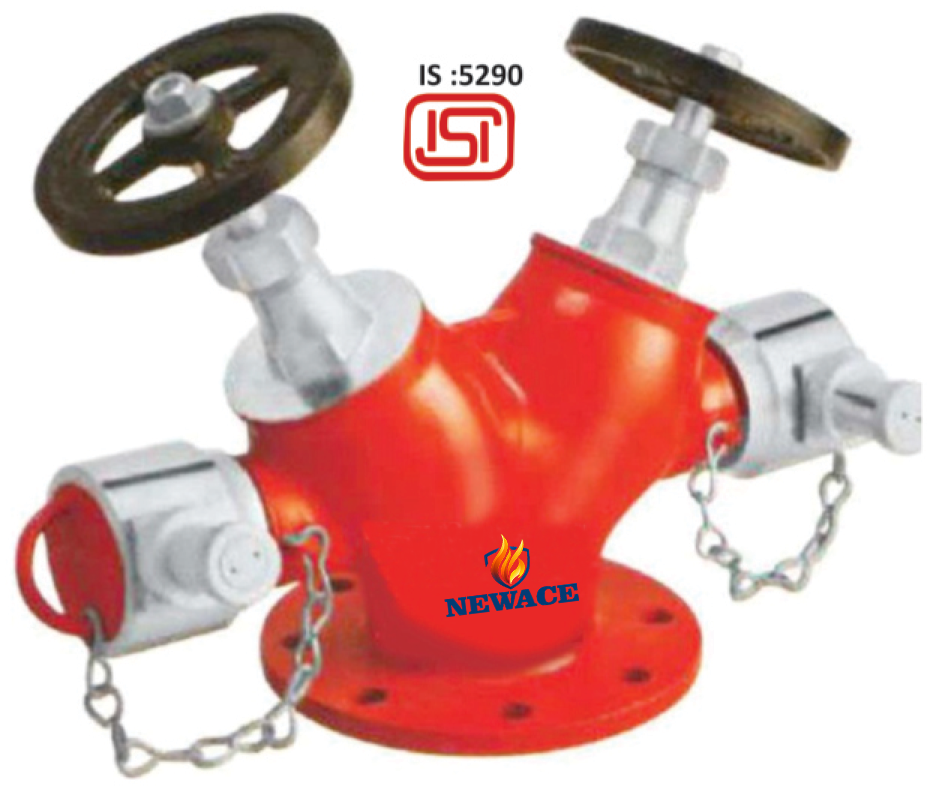

Aluminium Material
ISI Marked

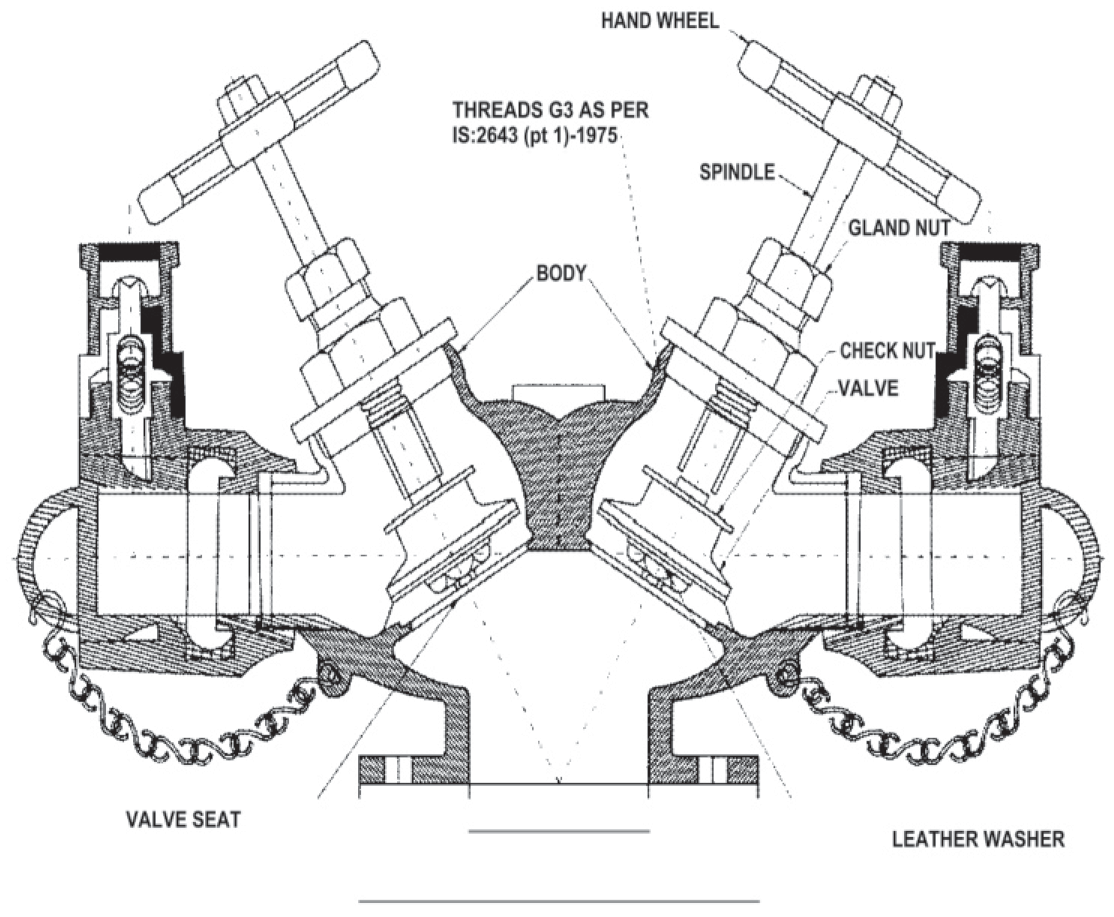

Double Outlet Landing Valve
TECHNICAL SPECIFICATIONS
Size :
63mm/75mm/80mm
Inlet :
4” NB Flanged
Outlet :
Female Instantaneous
Material :
Gun Metal/ Stainless Steel/ Aluminium Alloy
Conforming Specification :
IS: 5290, Type “B”, ISI Marked
Performance Test :
Hydrostatic Test (Body Test) :
Tested at 23 kgf/cm2
Water Tightness (Seat Test) :
Tested at 14 kgf/cm2
Flow Test :
1800 LPM discharge at 7 kgf/cm2
Hand Wheel :
Grey Cast Iron
Finish:-
Body :
Painted Fire Red Colour
Male Adaptor & Accessories :
Polished
Hologram :
Sticker stuck on Landing Valves.
