Reliable Protection When Every Second Counts

RRL Fire Hoses

RRL FIRE HOSES
RRL Fire Hose Type A
IS : 636 Type - A
ISI Marked
TECHNICAL SPECIFICATION
Inside
(inch.)		 Diameter
(mm)		 Proof pressure
Kg.f/cm2		 Burst Pressure
Kg.f/cm2		 Mass Wt.
(Gm./Mtr.)
1-1/2 38.0 21.4 35.7 275
2 50.0 21.4 35.7 350
2-1/2 63.0 21.4 35.7 425
2-3/4 70.0 21.4 35.7 480
Hose: Reinforced Rubber Lined Fire Hose
Conforming Specification: IS: 636/1988 Type – A, ISI Marked
Application: This Reinforced Rubber Lined Fire Hose is used for water delivery purpose in Fire-Fighting & Civil Engineering fields etc.

CONSTRUCTION

Jacket: Circular woven jacket made from a special blend of cotton & synthetic yarn with high abrasion and heat resistance. Jacket is also treated with suitable rot proofing agent.
Rubber Lining: A rubber inner lining with suitable rubber compound which gives flexibility, durability & better resistance.
Standard Length: 7.5 Mtrs, 15 Mtrs, 22.5 Mtrs & 30 Mtrs
End Connection: As per customer requirements

FEATURES

  • Compact, Flexible & Light weight
  • Abrasion Resistant
  • Ability to withstand high operating & back pressure
  • Reinforced rubber lined
  • Unaffected with mild dew

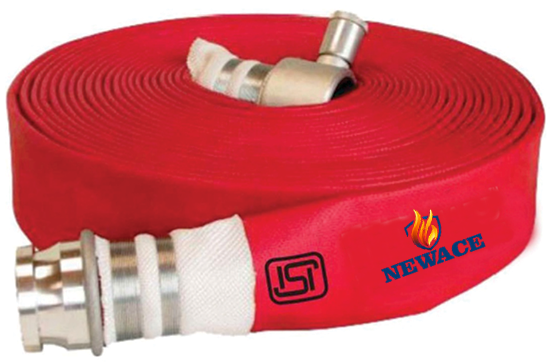

RRL Fire Hose Type B
IS : 636 Type - B
ISI Marked
TECHNICAL SPECIFICATION
Inside
(inch.)		 Diameter
(mm)		 Proof pressure
Kg.f/cm2		 Burst Pressure
Kg.f/cm2		 Mass Wt.
(Gm./Mtr.)
1-1/2 38.0 21.4 35.7 275
2 50.0 21.4 35.7 350
2-1/2 63.0 21.4 35.7 425
2-3/4 70.0 21.4 35.7 480
TYPE - B RRL HOSE PIPE

TECHNICAL SPECIFICATIONS

Hose: Reinforced Rubber Lined Fire Hose with Elastomeric Coating on outer surface
Conforming Specification: IS: 636/1988 Type – B, ISI Marked
Application: This Reinforced Rubber Lined Elastomeric Coated Fire Hose is used for water delivery purpose in Fire-Fighting, Oil & Power Sector, Industrial Plants & Sailing Vessels.
Construction:
Jacket: Circular woven jacket made from 100% synthetic yarn with high abrasion and heat resistance. The woven jacket is treated with a special Elastomeric Coating to give protection against moisture & fungus.
Rubber Lining: A rubber inner lining with suitable rubber compound which gives flexibility, durability & better resistance.
Standard Length: 7.5 Mtrs, 15 Mtrs, 22.5 Mtrs & 30 Mtrs
End Connection: As per customer requirements

FEATURES

  • Compact, Flexible & Light weight.
  • Abrasion, Bacteria & Fungus Resistant
  • Ability to withstand high operating & back pressure.
  • Reinforced rubber lined
  • Unaffected with mild dew
