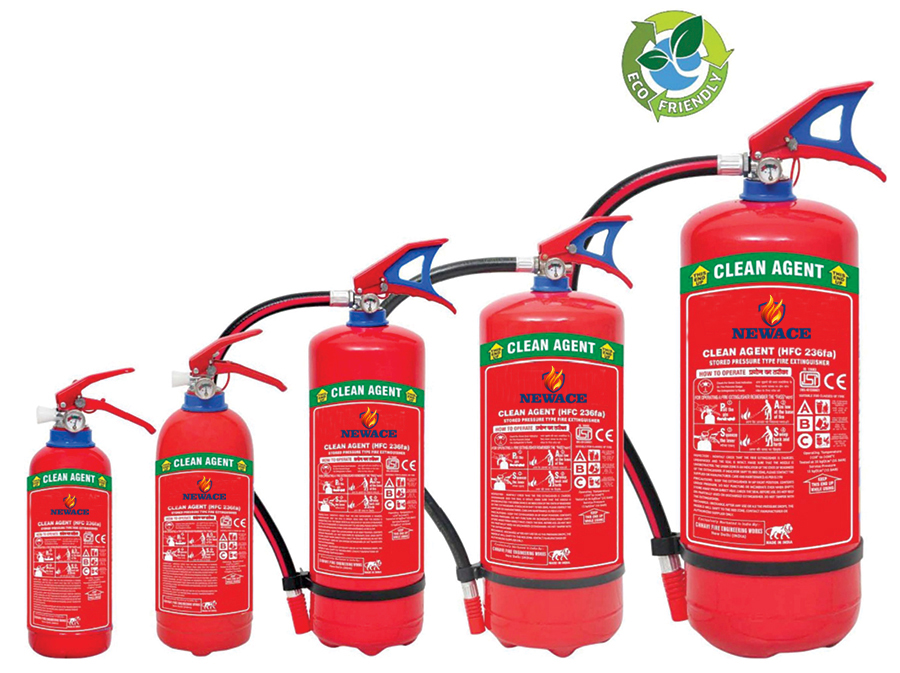

CLEAN AGENT
STORED PRESSURE TYPE FIRE EXTINGUISHER
Suitable for Class A, B & C fires that is involving
Wood, Paper, Paints, Solvents, Liquid Petrol,
Cloth, Flammable Gas, Live Electric Fire,
Delicate Machineries and
All Classes of Fire
Easily operated by one person
TECHNICAL SPECIFICATIONS
| Capacity | CLEAN AGENT 1 KG. | CLEAN AGENT 2 KG. | CLEAN AGENT 4 KG. | CLEAN AGENT 6 KG. | CLEAN AGENT 9 KG. |
|---|---|---|---|---|---|
| BIS Specification | IS 15683:2018 | IS 15683:2018 | IS 15683:2018 | IS 15683:2018 | IS 15683:2018 |
| Type of Fire | ABC | ABC | ABC | ABC | ABC |
| Extinguisher Type | Stored Pressure | Stored Pressure | Stored Pressure | Stored Pressure | Stored Pressure |
| Extinguishing Media | Clean Agent | Clean Agent | Clean Agent | Clean Agent | Clean Agent |
| Min Jet Length (mtr) | 2 | 2 | 4 | 6 | 6 |
| Test Pressure (kgf/cm2) | 35 | 35 | 35 | 35 | 35 |
| Operation Position | Upright | Upright | Upright | Upright | Upright |
| Operating Valve |
Squeeze Grip Type with Nozzle |
Squeeze Grip Type with Nozzle |
Squeeze Grip Type with Discharge Pipe & Nozzle |
Squeeze Grip Type with Discharge Pipe & Nozzle |
Squeeze Grip Type with Discharge Pipe & Nozzle |
| Operating Temperature | -30° to +60°C | -30° to +60°C | -30° to +60°C | -30° to +60°C | -30° to +60°C |
| Fire Rating | 1A 21B | 2A 34B | 2A 55B | 3A 89B | 4A 144B |
