FIRE HOSES
IS : 8423
ISI
ISI Marked
|
Inside (inch.) |
Diameter (mm) |
Proof pressure Kg.f/cm2 |
Burst Pressure Kg.f/cm2 |
Mass Wt. (Gm./Mtr.) |
|---|---|---|---|---|
| 1-1/2 | 38.0 | 21.4 | 35.7 | 250 |
| 2 | 50.0 | 21.4 | 35.7 | 300 |
| 2-1/2 | 63.0 | 21.4 | 35.7 | 350 |
| 2-3/4 | 70.0 | 21.4 | 35.7 | 400 |
CP FIRE HOSE
Hose:
Controlled Percolating Fire Hose
Conforming Specification:
IS: 8423/1994, ISI Marked
Application:
This Controlled Percolating Hose is used for water delivery purpose
in Fire - Fighting, Irrigation & Floor Washing etc.
CONSTRUCTION
Jacket:
Circular woven Jacket made from a special synthetic yarn.
Rubber Lining:
A ultra thin layer of rubber lining with suitable rubber compound
which ensure controlled percolation.
Standard Length:
7.5 Mtrs, 15 Mtrs, 22.5 Mtrs & 30 Mtrs.
End Connection:
As per customer requirements
FEATURES :
- Compact, Flexible & Light weight
- Low friction loss
- Abrasion resistance
- Ability to withstand high operating & back pressure.
IS : 12585
ISI
ISI Marked

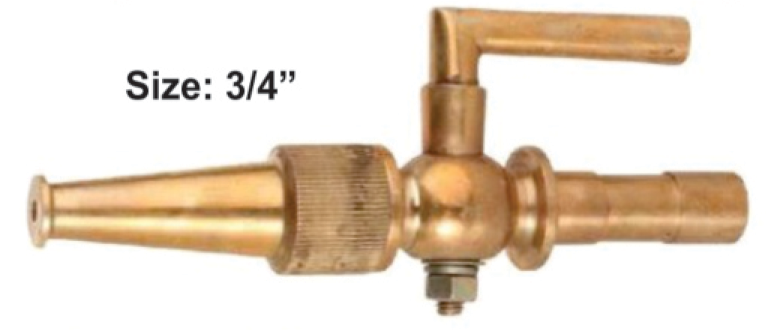

Shut Off Nozzle
Size: 3/4”

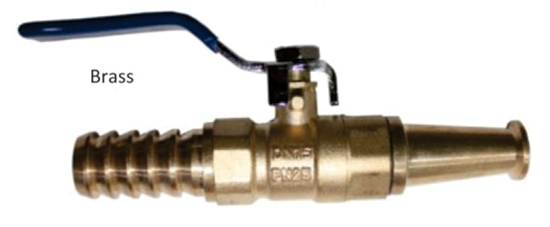

Brass

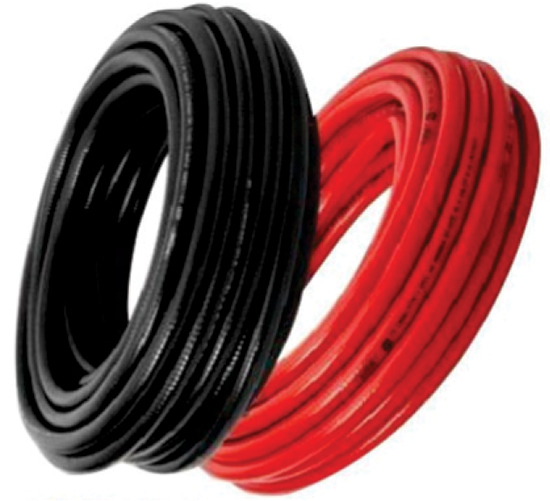

Thermo Plastic Hose Pipe
Hose:
Thermo Plastic Hose pipe
Conforming Specification:
Is: 12585, Type - 2, ISI Marked / IS:444 rubber Pressure up to 10 KG
Application:
This Thermo Plastic Hose is used for water delivery purpose in
Fire - Fighting purpose.
CONSTRUCTION
Lining :
A flexible Thermoplastic lining, smooth in bore
Reinforcement:
A Natural or Synthetic Textile
Reinforcement Cover:
A flexible thermoplastic cover, which may have a smooth or fluted finish
as agreed to between the purchaser & the supplier. The colour may be
different from that of the lining.
Standard Length:
30 Mtrs, 36 Mtrs & 40 Mtrs
Nominal Bore (ID):
10.00 mm to 50.00 mm
FEATURES :
- Compact, Flexible & Light weight
- Low friction loss
- Ability to withstand high operating & back pressure.

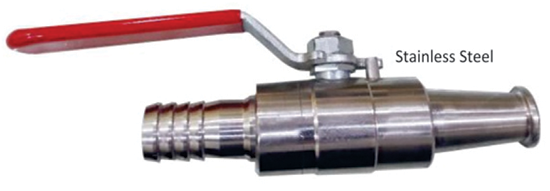

Stainless Steel

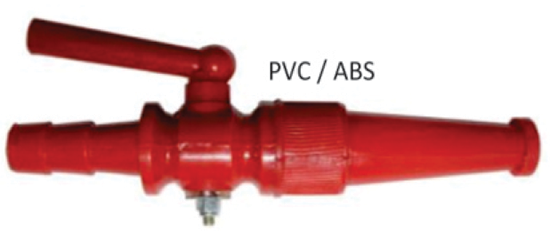

PVC / ABS
